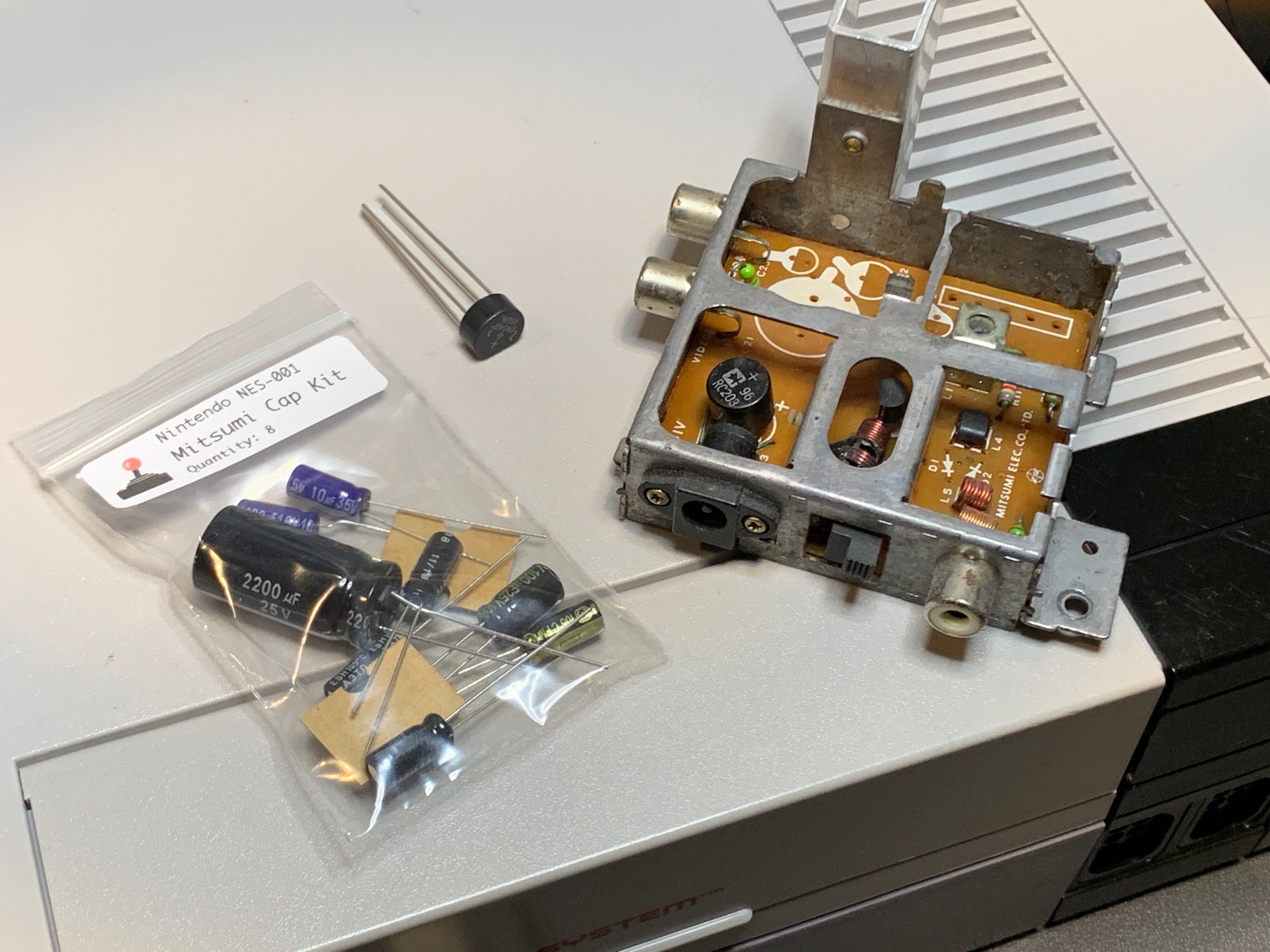

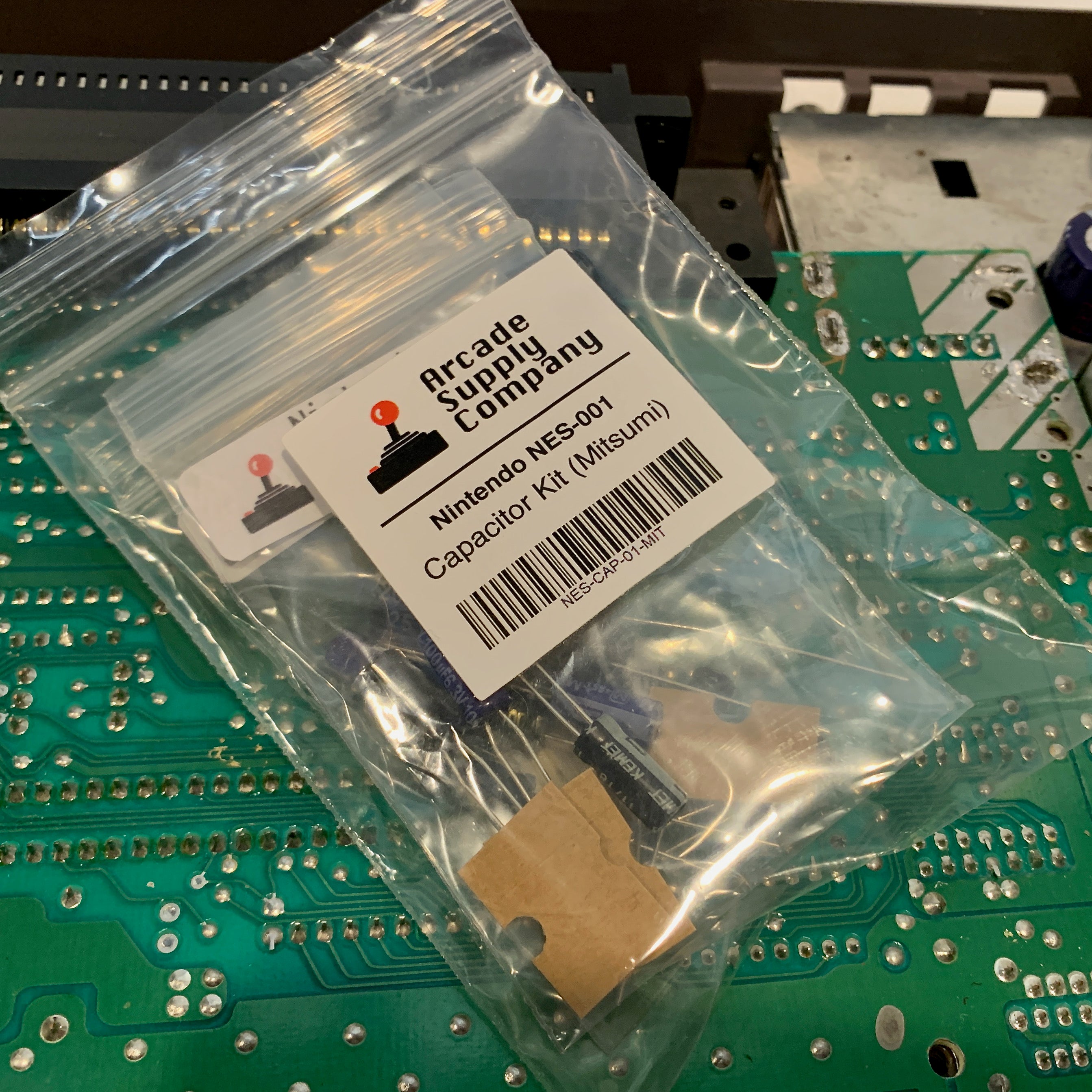

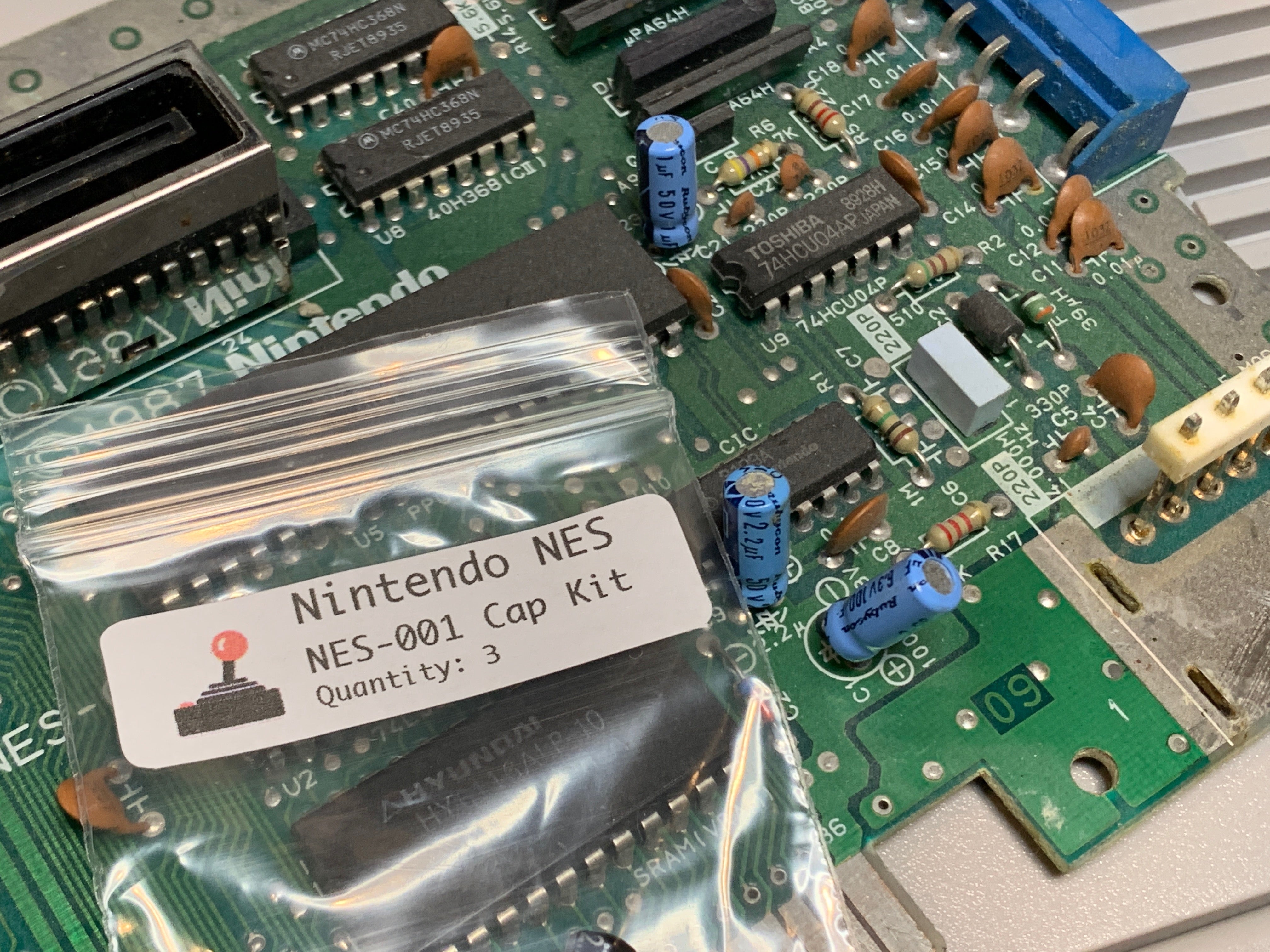

NES Capacitor Kit (NES-001 NTSC) – Full Replacement Kit for Mainboard & Power/RF Module
Revitalize your Nintendo NES (NES-001 NTSC) with this comprehensive capacitor refresh kit, designed to replace the original OEM components on both the mainboard and the power/RF module. If your console is showing signs of poor video/audio quality, no power, or distorted signals, this kit provides everything you need to restore your NES to full working order.
Features:
✔ Complete Capacitor Kit – Includes all necessary capacitors for both the mainboard and the power/RF module.
✔ Bridge Rectifier Diode – Includes a replacement bridge rectifier diode for the power module, a common point of failure that can cause your NES not to power on.
✔ Compatible with Alps or Mitsumi Modules – Works with both Alps and Mitsumi power/RF modules.
✔ Printed Layout Map – Provides a guide for installation, helping you identify the exact capacitor locations for your specific model/revision board.
✔ Common Symptoms of Bad Capacitors –
- Poor video or audio quality
- No audio or video output
- Inconsistent voltage to components
- Audio humming or static
- Swollen or discolored capacitors
- Capacitors leaking corrosive fluid that can damage other parts
What's Included?
✅ All necessary capacitors for NES-001 NTSC models (mainboard and power/RF module)
✅ 1x Bridge Rectifier Diode
✅ 1x Printed Layout Map for easy installation
📌 Note: This kit does not guarantee a fix for all issues, but replacing the capacitors is often a critical troubleshooting step and can restore reliable functionality to your console at a relatively low cost.
Restore your NES to its former glory with this easy-to-use capacitor kit—an affordable, effective solution for common console issues! 🎮🔧
