Sega Dreamcast Resettable Fuse (72V 400mA)

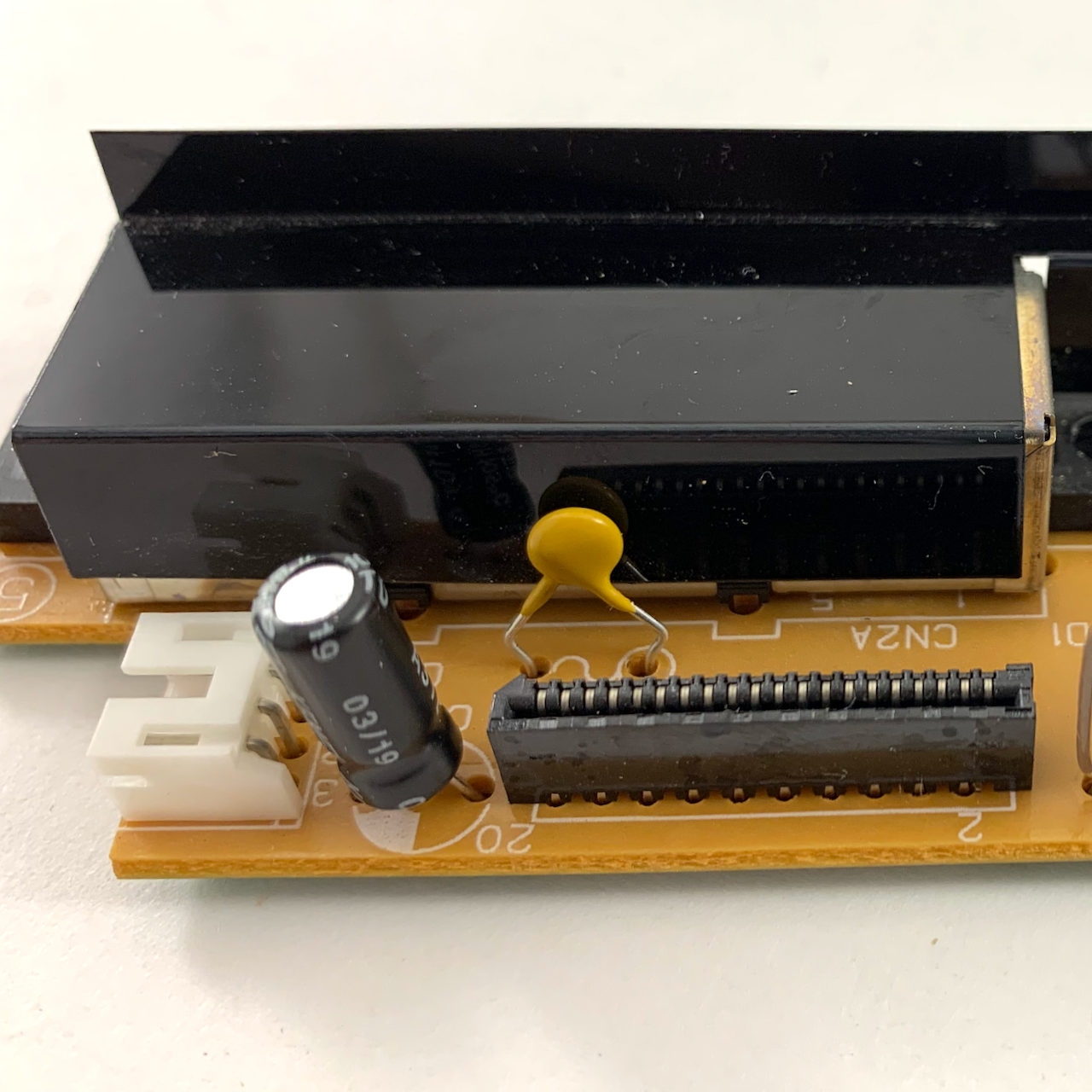

Sega Dreamcast consoles feature a fuse on the controller port PCB to protect against overcurrent caused by controllers or accessories. However, an unfortunate common issue is that unplugging a controller while the console is powered on can cause this fuse to trip, resulting in the console no longer recognizing any controllers.
This 72V 400mA resettable fuse is the recommended replacement for the stock OEM fuse, and it offers an upgrade: it's self-resetting. If the fuse trips, simply unplugging the console for a few minutes will allow it to reset, getting you back to gaming quickly without the need for manual replacement.
Features:
✔ Self-Resetting Fuse – No need to replace the fuse manually; unplugging the console for a few minutes will reset the fuse.
✔ Upgrade from OEM Fuse – The resettable nature of this fuse offers more convenience and longevity compared to the stock non-resettable fuse.
✔ Fuse Specs:
- Hold Current: 200mA
- Max Voltage: 72V
- Trip Current: 400mA
- Resistance: 4.4Ohms
- Min Operating Temperature: -40°C
-
Max Operating Temperature: +85°C
✔ Termination Style: Radial
✔ Perfect for Dreamcast Controllers – Compatible with the Dreamcast console to prevent overcurrent and protect your hardware.
What's Included?
✅ 1x Sega Dreamcast Resettable Fuse (72V 400mA)

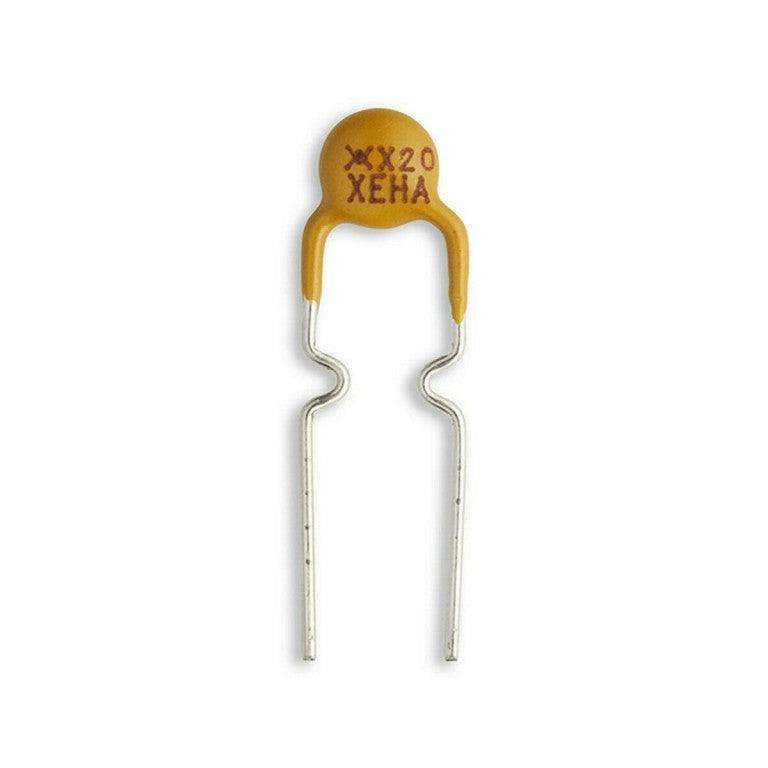

📌 Note: Image shown is a stock photo for a LittelFuse X20. The actual fuse may vary in product series number.
Upgrade your Dreamcast's fuse system with this self-resetting fuse for more reliable controller protection and hassle-free gaming! 🎮🔧
