The L7850CV is a common 5V linear voltage regulator used in many vintage and retro game consoles to provide stable, regulated power to logic circuits, CPUs, RAM, and other sensitive components. When a console experiences random resets, no power, or unstable behavior, a failing voltage regulator is often a hidden culprit.
This regulator is designed to take a higher DC input voltage and output a steady 5V, helping protect downstream components from voltage fluctuations. It’s a direct replacement for original L7850CV regulators found on many console mainboards and power supply circuits.
Features:
-
Fixed 5V output
-
Commonly used in retro and vintage game consoles
-
Helps resolve power instability, crashes, or boot failures
-
Through-hole package for easy soldering
-
Ideal for repairs, restorations, and preventative maintenance

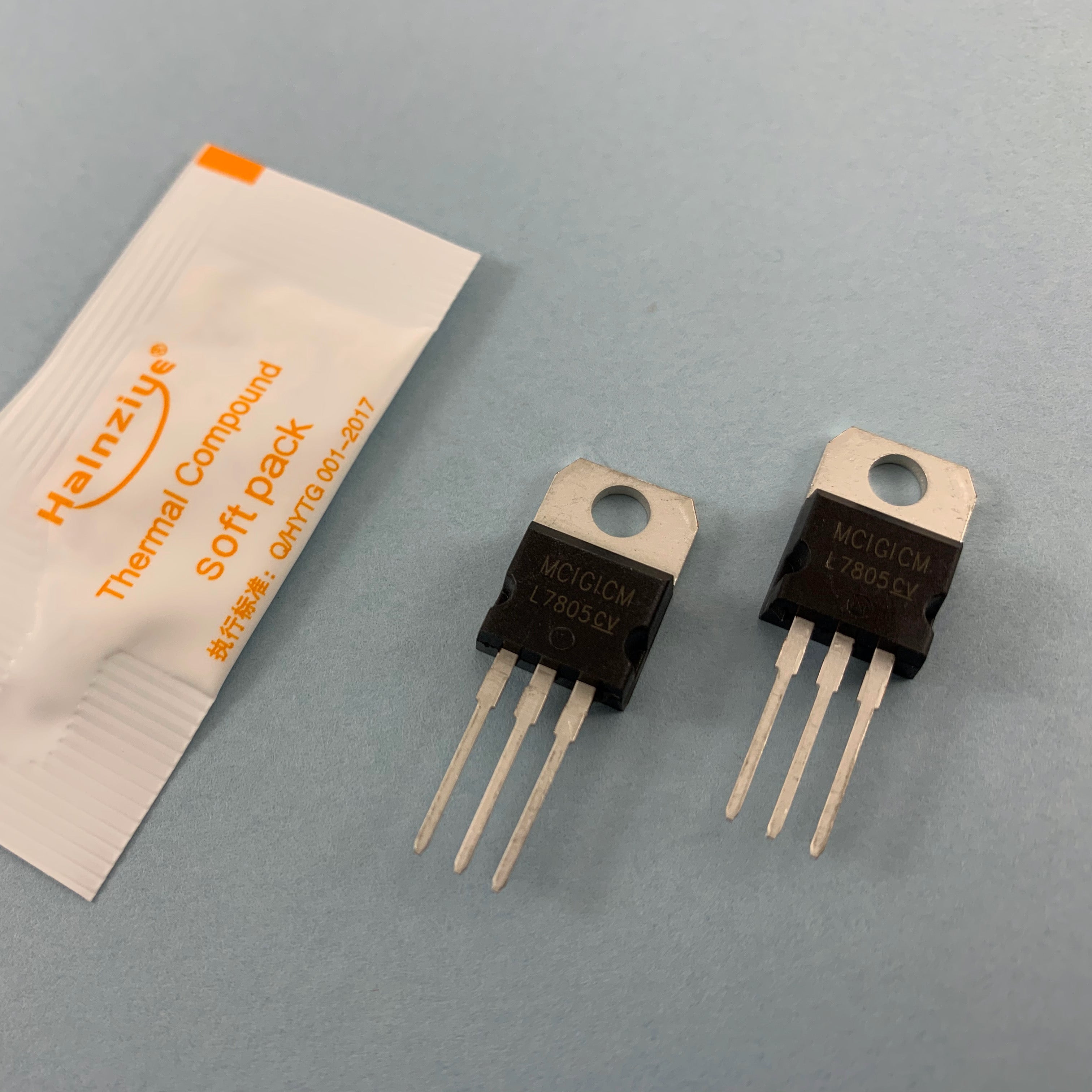

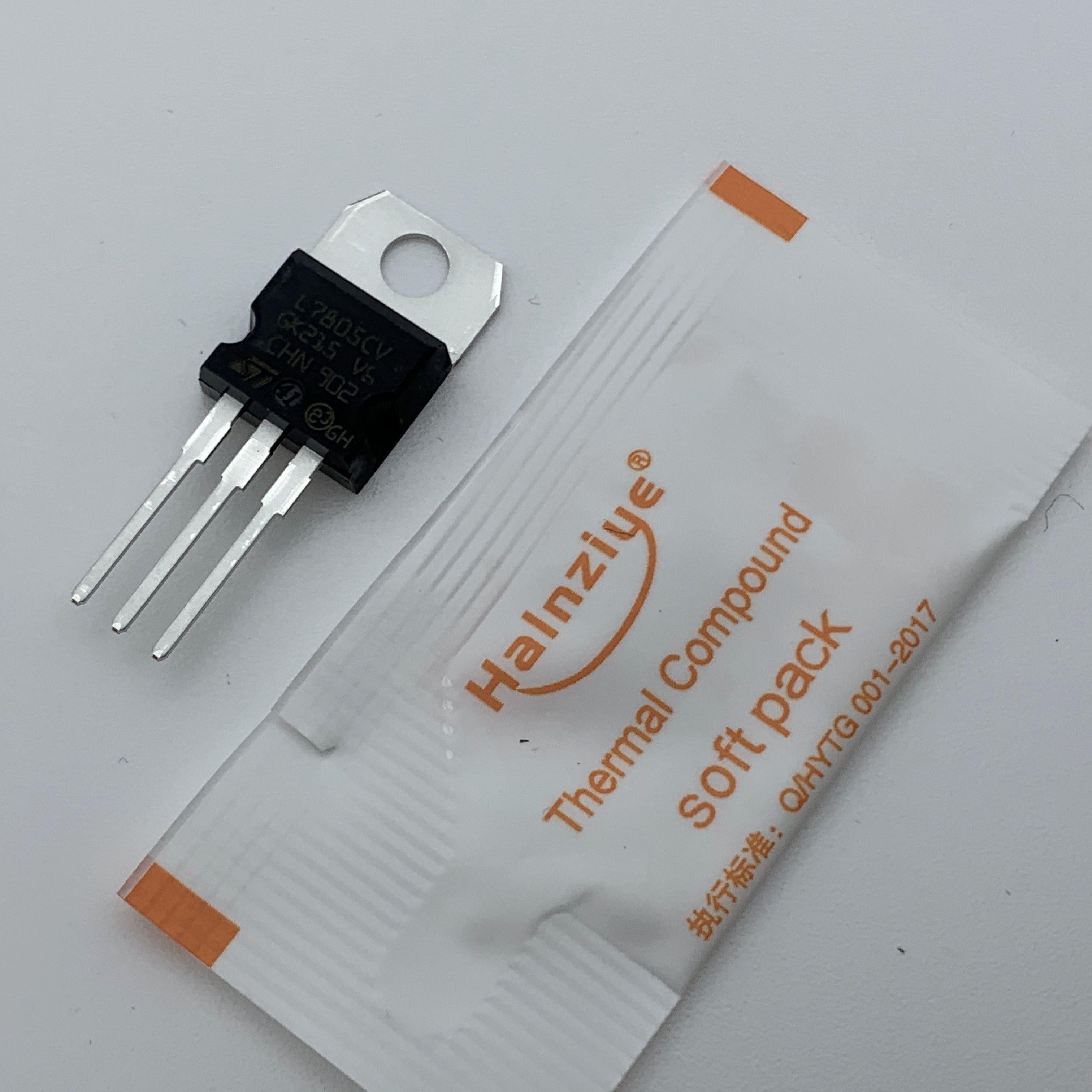

- Includes thermal paste
Technical Specifications:
-

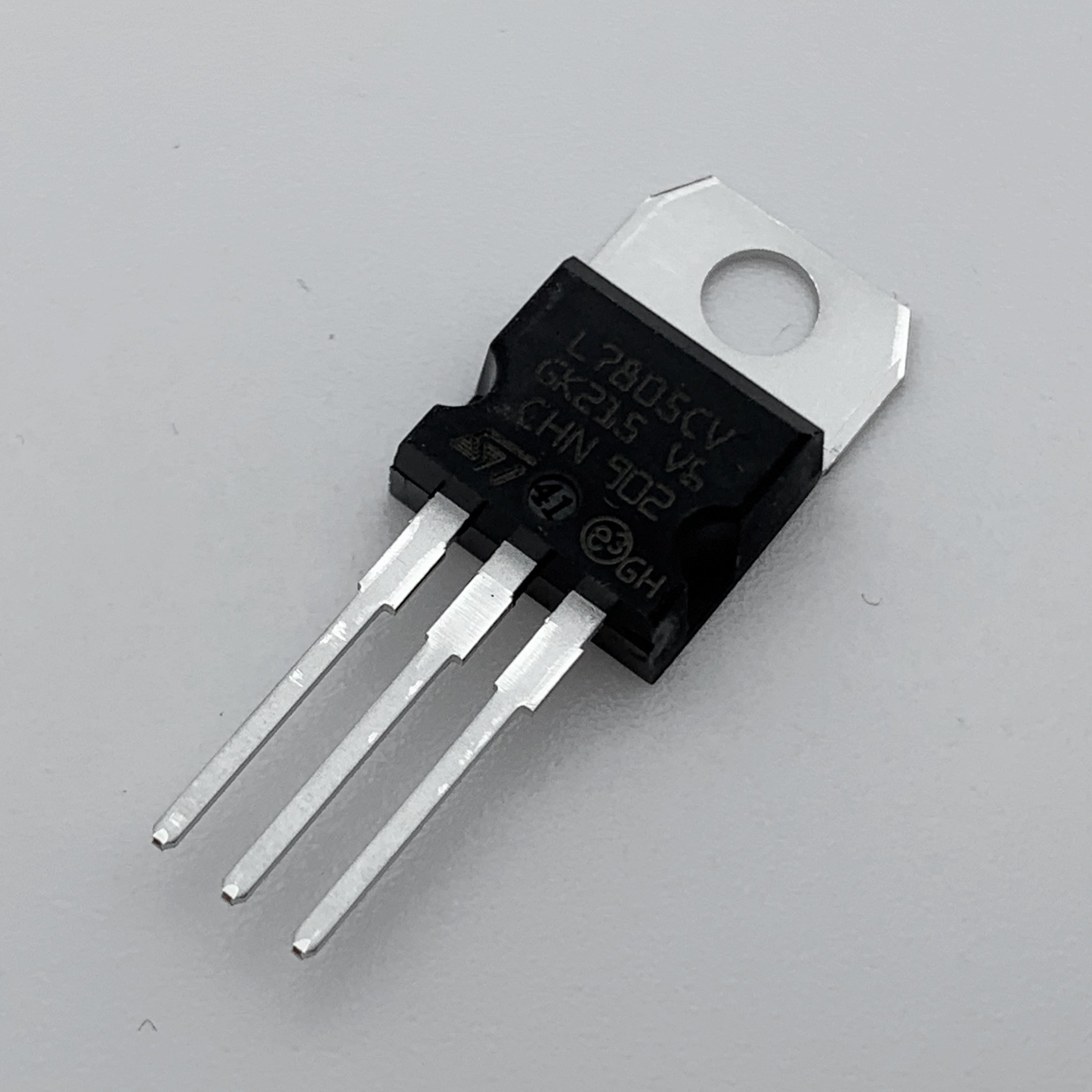

Part Number: L7850CV
-
Output Voltage: 5V (fixed)
-
Output Current: Up to 1.5A (with proper heat-sinking)
-
Input Voltage Range: Typically 7V–35V
-

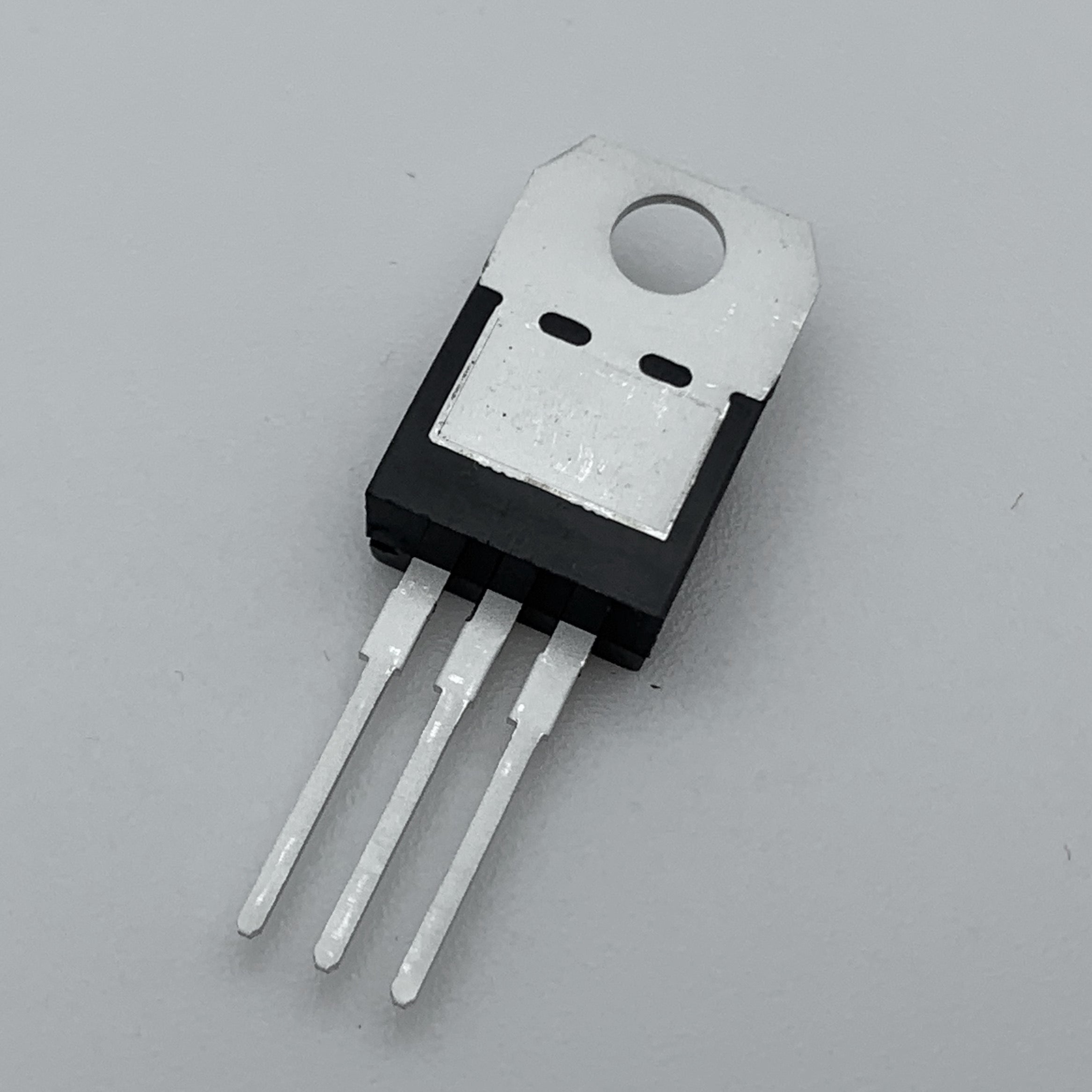

Package Type: TO-220 (through-hole)
-
Regulator Type: Linear voltage regulator
-
Pinout: Input / Ground / Output
-
Operating Temperature: −40°C to +125°C
Whether you’re repairing a dead console or doing a full restoration, replacing tired power components like the L7850CV can make a big difference in long-term reliability.
📌 Note: Always verify orientation and heatsink requirements before installation.
